Cudy WR1200 Specifications

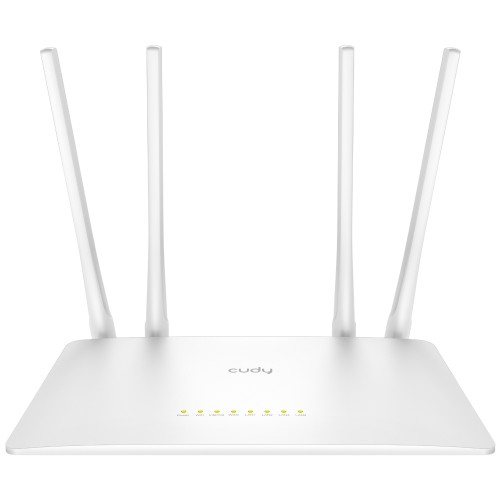

Cudy WR1200 AC1200 Dual Band WiFi Router

Cudy WR1200 is an AC1200 dual-band WiFi 5 router designed for home, apartment, small office and everyday wireless networking. It combines 2.4GHz and 5GHz wireless connectivity with multiple operating modes, making it suitable for users who need a flexible and easy-to-manage WiFi solution. The current Cudy WR1200 specification lists up to 867Mbps on 5GHz and 300Mbps on 2.4GHz.

Cudy WR1200 AC1200 Dual-Band WiFi

The Cudy WR1200 provides up to 867Mbps on the 5GHz band and up to 300Mbps on 2.4GHz. The 5GHz band is suitable for higher-speed activities such as HD streaming and gaming, while 2.4GHz offers broader compatibility for everyday devices.

These are theoretical wireless link rates. Actual speed depends on the connected device, network traffic, interference, distance and building environment.

MU-MIMO and Beamforming Technology

The router supports MU-MIMO technology for more efficient communication with multiple compatible devices. It also supports Beamforming, which helps focus wireless signals toward connected devices for improved wireless performance.

This makes the router suitable for environments where smartphones, laptops, smart TVs and other WiFi devices are connected at the same time.

4 High-Gain External Antennas

The Cudy WR1200 uses 4 fixed high-gain antennas. Cudy’s current specifications list 4× fixed antennas and provide a reference coverage figure of up to 100m², while actual coverage varies according to walls, interference, device location and building layout.

Therefore, the 100m² figure should be treated as a reference rather than a guaranteed coverage area.

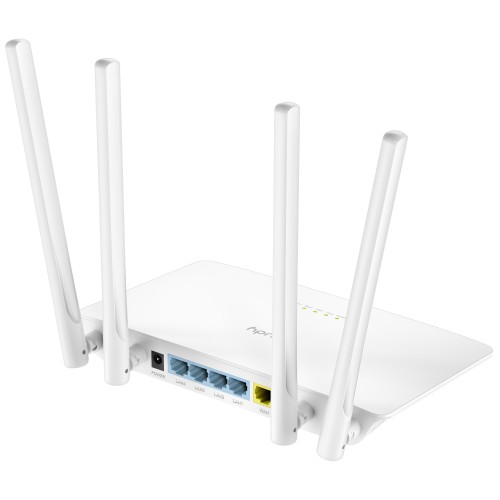

5 Fast Ethernet Ports

The current WR1200 specification provides 5 × 10/100Mbps RJ45 ports, including 1 WAN port and 4 LAN ports. These ports can be used to connect computers, IPTV devices, smart TVs, switches and other wired network equipment.

Important: These are Fast Ethernet ports, not Gigabit Ethernet ports.

Multiple Operating Modes

The Cudy WR1200 supports several operating modes, including:

• WiFi Router
• Access Point
• Range Extender
• WISP
• Client

This flexibility allows the router to be used in different networking environments instead of being limited to standard router operation.

Cudy App and Easy Management

The router can be managed through the Cudy App, allowing users to configure and manage compatible network settings from a mobile device. Current WR1200 2.1 specifications also list cloud remote control and local Cudy App control.

WPA3 Security and Parental Controls

The current WR1200 specification supports WPA/WPA2/WPA3 wireless security, guest networks and parental-control features. Parental controls can be used to create profiles, manage online schedules and restrict access to inappropriate websites.

Ideal for Home and Small Networks

The Cudy WR1200 AC1200 Dual Band WiFi Router is suitable for homes, apartments, small offices, shops and users looking for an affordable dual-band WiFi router with flexible operating modes.

Ideal For

Cudy WR1200 is suitable for:

• Home WiFi
• Apartment networks
• Small offices
• Small shops
• Student use
• Internet browsing
• HD video streaming
• Online gaming
• Smart TV connectivity
• WiFi range extension
• Access Point deployment

FAQ

What is Cudy WR1200?

Cudy WR1200 is an AC1200 dual-band WiFi 5 router designed for home and small-network applications.

What is the speed of Cudy WR1200?

It supports up to 867Mbps on 5GHz and 300Mbps on 2.4GHz. These are theoretical wireless rates, not guaranteed internet speeds.

Does Cudy WR1200 support MU-MIMO?

Yes. The WR1200 supports MU-MIMO, with the current specification noting MU-MIMO availability on 5GHz.

How many LAN ports does Cudy WR1200 have?

The current specification has 1 WAN and 4 LAN ports, all using 10/100Mbps Fast Ethernet.

Does Cudy WR1200 support Access Point mode?

Yes. It supports Router, Access Point, Range Extender, WISP and Client modes.

Does Cudy WR1200 support WPA3?

Yes. Current WR1200 specifications list WPA/WPA2/WPA3 wireless security.
