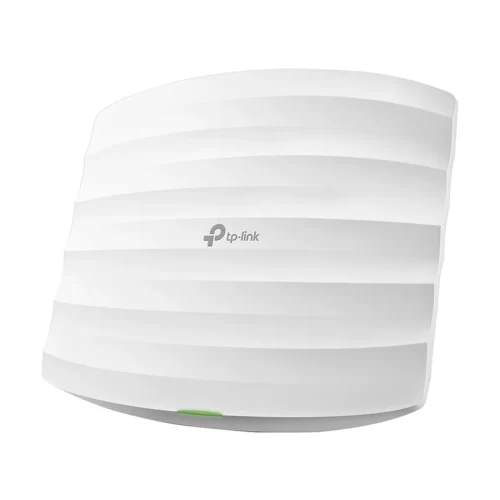

TP-Link EAP225 AC1350 Wireless Access Point

The TP-Link EAP225 is an AC1350 dual-band wireless access point designed for offices, businesses, hotels, restaurants, schools and other locations that require reliable Wi-Fi connectivity. It supports simultaneous 2.4GHz and 5GHz wireless networking with up to 450Mbps on 2.4GHz and 867Mbps on 5GHz, delivering a combined AC1350-class wireless rate.

With 802.11ac Wave 2 MU-MIMO technology, the access point can communicate with multiple compatible devices more efficiently. It also supports Beamforming, Band Steering and Airtime Fairness to help optimize wireless network performance.

TP-Link EAP225 AC1350 Dual-Band Wi-Fi

The TP-Link EAP225 AC1350 operates on both 2.4GHz and 5GHz bands. The 2.4GHz band provides up to 450Mbps, while the 5GHz band provides up to 867Mbps. The dual-band design allows users to connect different devices according to their network requirements.

MU-MIMO and Advanced Wireless Features

This access point supports MU-MIMO, Beamforming, Band Steering and Airtime Fairness. These technologies can help improve wireless efficiency when multiple compatible devices are connected simultaneously.

The EAP225 also supports multiple SSIDs, wireless scheduling, rate limiting, load balancing and wireless statistics for more flexible network management.

Gigabit Ethernet and PoE Support

The TP-Link EAP225 features one Gigabit Ethernet port for high-speed wired network connectivity. It supports 802.3af PoE and 24V Passive PoE, allowing flexible installation without requiring a separate power connection near the access point. A Passive PoE adapter is included with the official package specification.

Omada Centralized Network Management

The EAP225 is part of the TP-Link Omada networking ecosystem. It can be centrally managed through compatible Omada controllers and software, making it suitable for businesses that need to manage multiple access points and network devices.

Supported management options include Omada hardware controllers, software controller and compatible cloud-based management. The exact cloud-management capability depends on the hardware version.

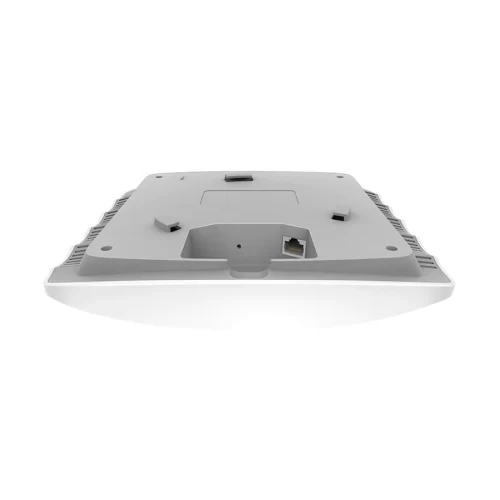

Ceiling and Wall Mount Design

The access point is designed for ceiling or wall installation. It has three internal omni-directional antennas, with 4dBi gain on 2.4GHz and 5dBi on 5GHz according to TP-Link’s current specifications. Its dimensions are approximately 205.5 × 181.5 × 37.1mm.

Ideal for Business and Office Networks

The TP-Link EAP225 AC1350 can be used in offices, educational institutions, hotels, restaurants, shops and other commercial environments where centralized Wi-Fi management and PoE installation are useful.

Applications

TP-Link EAP225 is suitable for:

• Office Wi-Fi
• Corporate networks
• Hotel Wi-Fi
• Restaurant Wi-Fi
• School and educational networks
• Shop and showroom networks
• Small business networks
• Guest Wi-Fi
• Multi-Access-Point deployments

FAQ

What is TP-Link EAP225?

TP-Link EAP225 is an AC1350 dual-band wireless access point designed for business and commercial Wi-Fi networks.

What is the speed of TP-Link EAP225?

It supports up to 450Mbps on 2.4GHz and 867Mbps on 5GHz. These are theoretical wireless link rates; actual throughput varies depending on environment, clients and network conditions.

Does TP-Link EAP225 support PoE?

Yes. It supports 802.3af PoE and Passive PoE depending on hardware version.

Does EAP225 support Omada?

Yes. EAP225 is part of the TP-Link Omada ecosystem and supports centralized management through compatible Omada solutions.

Is TP-Link EAP225 suitable for office use?

Yes. Its dual-band Wi-Fi, Gigabit Ethernet, PoE, MU-MIMO and centralized management features make it suitable for office and commercial wireless networks.
