| Audio and Video | |
| IP Camera Input | Up to 5-ch IP camera inputs 1-ch (up to 5-ch) Up to 2MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras |
| Two-Way Talk | Support all channels HDTVI two-way audio technology |
| Component Environment | |
| Operational Conditions | Working Temperature -10 °C to 55 °C (14 °F to +131 °F) |
| General | |
| Brand | Hikvision |
| Model | DS-7104HGHI-M1/T |
| Playback And Backup | |
| Sync Playback | 4-ch |
| Recording Features | |
| Bit Rate | 32 Kbps to 4 Mbps |
| Record Rate | Main stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N) For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N) For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: 4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N) |
| Resolution | For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF For SD stream access: WD1/4CIF/VGA/CIF |
| Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Display | |
| Resolution | Analog Video Input-4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection HDTVI Input-1080p25, 1080p30, 720p25, 720p30 AHD Input-1080p25, 1080p30, 720p25, 720p30 HDCVI Input-1080p25, 1080p30, 720p25, 720p30 CVBS Input-Support HDMI Output-1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz VGA Output-1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz Video Output Mode-HDMI/VGA simultaneous output Audio Input-1-ch RCA (2.0 Vp-p, 1 KΩ) 4-ch via coaxial cable Audio Output-1-ch, RCA (Linear, 1 KΩ) |
| Camera Feature | |
| Storage Conditions | Working Humidity 10% to 90% |
| Network & Connectivity | |
| Ethernet Port | 1, RJ45 10/100 Mbps self-adaptive Ethernet interface |
| Interface | SATA-1 SATA interface Capacity-Up to 4 TB capacity for each disk USB Interface-Rear panel: 2 × USB 2.0 64 Mbps |
| Network Function | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS |
| Power | |
| Power Supply | 12 VDC, 1.5 A |
| Power Consumption | ≤ 10 W (without HDD) |
| Physical Specification | |
| Dimensions | 200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch) ≤ 0.8 kg (without HDD, 1.8 lb.) |
| Other Features | |
| Other Features | Stream Type-Video, Video & Audio Audio Compression-G.711u Audio Bitrate-64 Kbps Audio over coaxial cable, motion detection |
| Warranty Information | |
| Manufacturing Warranty | 1 Year |
-16%
Esonic 19ELMW 19 inch HD LED Monitor
Original price was: 5,900.00৳ .5,500.00৳ Current price is: 5,500.00৳ .
Hikvision DS-2CE17D0T-LFS (3.6mm) (2.0MP) Bullet CC Camera (built in Audio)
Original price was: 2,850.00৳ .2,550.00৳ Current price is: 2,550.00৳ .

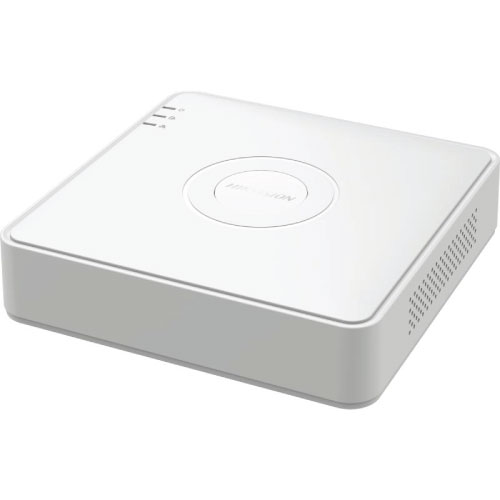

Hikvision DS-7104HGHI-M1/T 4-ch Two Way Audio 1080p Lite Mini DVR
Original price was: 3,400.00৳ .2,850.00৳ Current price is: 2,850.00৳ .
- Model: DS-7104HGHI-M1/T
- 1-ch RCA (2.0 Vp-p, 1 KΩ)
- 4-ch via coaxial cable
- 1-ch (up to 5-ch)
- Up to 2MP resolution
- Support all channels HDTVI two-way audio
