Ruijie RG-ES118GS-P Specifications
| Specification | Details |
|---|---|
| Brand | Ruijie Reyee |
| Model | RG-ES118GS-P |
| Switch Type | Unmanaged PoE+ Switch |
| Layer | Layer 2 |
| Total Ports | 18 |
| Gigabit PoE+ Ports | 16 × 10/100/1000BASE-T |
| SFP Uplink | 2 × 1GE SFP |
| PoE Ports | 16 |
| PoE Standard | PoE / PoE+ |
| Total PoE Budget | 247W |
| Maximum PoE Per Port | 30W |
| Switching Capacity | 36Gbps |
| Forwarding Rate | 26.8 Mpps |
| MAC Address Table | 8K |
| PoE Watchdog | Yes |
| Port Isolation | Yes |
| Installation | Desktop / suitable network installation |
| Operating Temperature | 0°C–45°C |
| Warranty | 3 Years |

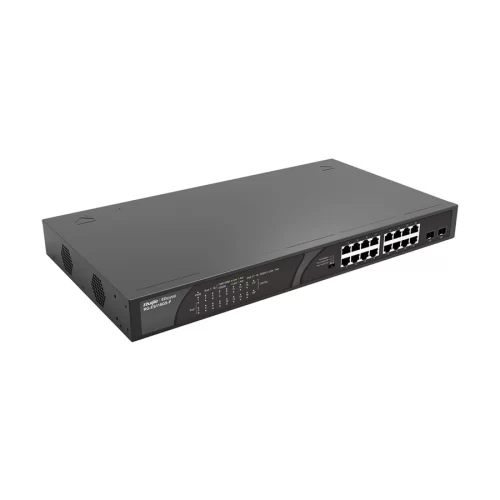

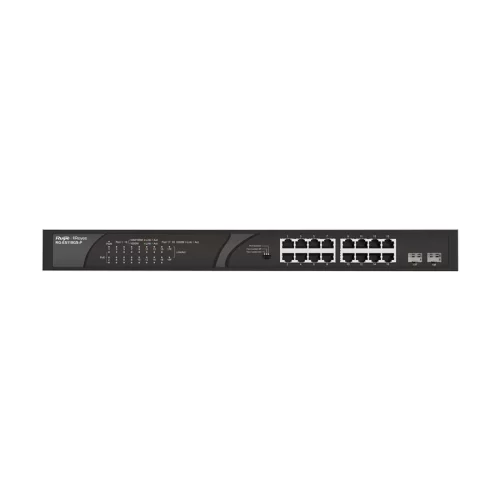

Ruijie RG-ES118GS-P 18-Port Unmanaged PoE Switch
The Ruijie RG-ES118GS-P is an 18-Port Gigabit Unmanaged PoE+ Switch designed for CCTV surveillance, IP cameras, access points, VoIP devices and other network equipment that can receive both data and power over Ethernet.
It provides 16 × 10/100/1000Mbps PoE+ ports and 2 × 1000Mbps SFP uplink ports, making it suitable for Gigabit network installations that require multiple PoE-powered devices. The switch offers a 36Gbps switching capacity and a 247W total PoE budget.
16 Gigabit PoE+ Ports
The Ruijie RG-ES118GS-P features 16 Gigabit RJ45 ports supporting 10/100/1000Mbps Ethernet.
All 16 of these ports support PoE/PoE+, allowing compatible network devices to receive both network data and electrical power through the same Ethernet cable.
This can simplify installations for IP cameras, wireless access points and other PoE-compatible devices.
247W PoE Power Budget
The switch provides a total 247W PoE budget across its PoE-enabled ports.
Each PoE port can provide up to 30W, subject to the overall available PoE budget and connected-device requirements.
This makes the switch suitable for larger CCTV and network installations where multiple PoE devices need to operate from a central switch.
2 Gigabit SFP Uplink Ports
In addition to its 16 PoE+ ports, the RG-ES118GS-P provides 2 × 1000Mbps SFP optical uplink ports.
These SFP ports can be used for Gigabit fiber uplinks to compatible network equipment, providing flexible connectivity for larger network deployments.
36Gbps Switching Capacity
The Ruijie RG-ES118GS-P has a 36Gbps switching capacity and a forwarding rate of approximately 26.8 Mpps.
This provides sufficient switching performance for Gigabit network environments with multiple connected devices.
Intelligent PoE Management
Ruijie includes intelligent PoE management features in the RG-ES118GS-P.
The switch can monitor PoE-powered devices and provides PoE Watchdog functionality. This feature can help detect certain device connection problems and automatically recover a compatible powered device.
CCTV Network Application
The RG-ES118GS-P is particularly suitable for network surveillance installations.
Its large buffer and Gigabit PoE+ ports are designed to support smooth data transmission for CCTV environments. Compatible IP cameras can receive power and network connectivity through a single Ethernet cable.
Unmanaged Plug-and-Play Design
The Ruijie RG-ES118GS-P is an unmanaged switch, so normal network installation does not require complicated switch configuration.
Connect the Ethernet cables, connect the compatible PoE devices and provide power to the switch. This makes it practical for installers and businesses that need straightforward PoE network expansion.
Ruijie also states that this unmanaged switch can be visible on Ruijie Cloud when at least one managed switch is deployed on the same network.
Suitable For
The Ruijie RG-ES118GS-P is suitable for:
- IP CCTV Camera Networks
- Office Networking
- Business Networks
- Wi-Fi Access Point Networks
- PoE Camera Installation
- IP Phone Networks
- Retail Shops
- Restaurants
- Small and Medium Businesses
- Surveillance Projects
- Gigabit Network Expansion
- Fiber Uplink Networks
Why Choose Ruijie RG-ES118GS-P?
The Ruijie RG-ES118GS-P combines 16 Gigabit PoE+ ports, 2 Gigabit SFP uplinks, 247W PoE power and 36Gbps switching capacity in one unmanaged switch.
For CCTV and network installations requiring multiple PoE devices, its combination of Gigabit connectivity, PoE power delivery and SFP uplinks provides a practical network infrastructure solution.
FAQ
What is Ruijie RG-ES118GS-P?
It is an 18-port Gigabit unmanaged PoE+ switch with 16 PoE+ RJ45 ports and 2 Gigabit SFP uplink ports.
How many PoE ports does RG-ES118GS-P have?
It has 16 PoE/PoE+ Gigabit Ethernet ports.
What is the PoE budget?
The total PoE budget is 247W. Each PoE port can provide up to 30W, subject to the total available budget.
Does RG-ES118GS-P have SFP ports?
Yes. It has 2 × 1Gbps SFP uplink ports.
What is the switching capacity?
The switching capacity is 36Gbps.
Is Ruijie RG-ES118GS-P a managed switch?
No. It is an unmanaged Layer 2 switch.
Is it suitable for IP cameras?
Yes. Its 16 Gigabit PoE+ ports, 247W PoE budget and CCTV-oriented features make it suitable for compatible IP camera networks.
