Hikvision iDS-7216HQHI-M2/XT DVR Descriptions

Hikvision iDS-7216HQHI-M2/XT DVR

Hikvision iDS-7216HQHI-M2/XT DVR is a professional 16-channel 1U AcuSense digital video recorder designed for advanced CCTV surveillance systems. It supports multiple camera technologies including HDTVI, AHD, HDCVI, CVBS and IP, making it suitable for businesses, offices, commercial properties, institutions, warehouses and other security applications. The recorder combines efficient H.265 Pro+ compression with intelligent security functions such as Motion Detection 2.0, perimeter protection, facial recognition and AcuSearch.

16 Channel AcuSense DVR

The Hikvision iDS-7216HQHI-M2/XT DVR provides 16 analog camera channels through BNC interfaces. It can work with different video technologies, including HDTVI, AHD, HDCVI, CVBS and IP, providing flexibility when building or upgrading a CCTV system.

The recorder can also support up to 24 IP camera inputs, with each IP channel supporting cameras up to 6MP resolution. This makes the DVR suitable for surveillance systems that combine traditional HD analog cameras with higher-resolution network cameras.

H.265 Pro+ Video Compression

The Hikvision iDS-7216HQHI-M2/XT DVR supports H.265 Pro+, H.265 Pro, H.265, H.264+ and H.264 video compression technologies. H.265 Pro+ is designed to improve encoding efficiency and reduce storage requirements while maintaining suitable video quality.

Efficient compression is particularly useful in CCTV installations where cameras record continuously and large amounts of video footage need to be stored. Actual storage time depends on the number of cameras, recording resolution, frame rate, scene activity, compression settings and installed HDD capacity.

AcuSense and Intelligent Detection

A major feature of the Hikvision iDS-7216HQHI-M2/XT DVR is its AcuSense intelligent video analysis. Hikvision’s deep-learning technology can help distinguish people and vehicles from other moving objects, helping reduce false alarms caused by events such as leaves, lights and other irrelevant movement.

The recorder supports Motion Detection 2.0 across the analog channels and provides intelligent search capabilities for more efficient investigation of recorded footage.

Perimeter Protection

The Hikvision iDS-7216HQHI-M2/XT DVR supports advanced perimeter protection on up to 8 channels. This feature can be used for security scenarios involving line-crossing and intrusion detection.

By using intelligent human and vehicle analysis, the system can help security operators focus on more relevant events instead of reviewing every movement detected by the cameras.

Facial Recognition

For installations requiring more advanced identification features, the Hikvision iDS-7216HQHI-M2/XT DVR supports facial detection and recognition functions. The official specification lists support for up to 4 channels of human face recognition.

The system can also capture and search face pictures and supports face-picture comparison functions. These capabilities can be useful in commercial, institutional and controlled-access surveillance environments where intelligent event searching is important.

Two HDD Storage

The Hikvision iDS-7216HQHI-M2/XT DVR includes two SATA interfaces for internal hard drives. Current specifications list support for up to 12TB capacity per disk, allowing up to 24TB of total HDD capacity when two supported 12TB drives are installed.

A larger storage configuration can be useful for installations requiring longer recording retention. The actual recording duration will depend on camera count, resolution, frame rate, encoding settings and motion activity.

16 Channel Playback and High Decoding Capability

The recorder supports 16-channel synchronous playback, allowing security operators to review footage from multiple cameras at the same time. It can decode up to 24 channels of 1080P video at 30fps according to the manufacturer’s specification.

This makes the Hikvision iDS-7216HQHI-M2/XT DVR suitable for larger CCTV systems where multiple camera feeds need to be monitored and reviewed efficiently.

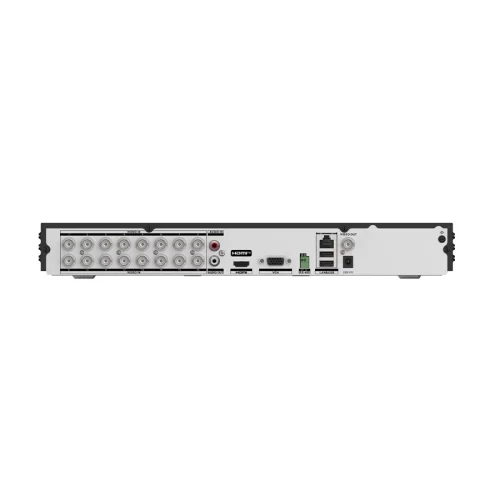

HDMI, VGA and Network Connectivity

For local monitoring, the DVR provides HDMI and VGA video outputs. The HDMI output supports up to 4K resolution at 30Hz, while VGA supports resolutions up to 1920 × 1080 at 60Hz.

The network interface is a 10/100/1000Mbps self-adaptive RJ45 Ethernet port. Remote management and monitoring are supported through Hikvision networking features such as Hik-Connect and DDNS.

Suitable for Business and Commercial CCTV

The Hikvision iDS-7216HQHI-M2/XT DVR is suitable for offices, shops, factories, warehouses, educational institutions, commercial buildings and other locations requiring a multi-camera security system.

Its combination of 16 analog channels, up to 24 IP camera inputs, dual HDD support, AcuSense intelligent analysis and multiple video input standards makes it a flexible option for both new CCTV installations and system upgrades.

Hikvision iDS-7216HQHI-M2/XT DVR Price in Bangladesh

The Hikvision iDS-7216HQHI-M2/XT DVR price in Bangladesh varies by seller, warranty and promotional offer. Current Bangladesh listings show approximately ৳16,500 at Star Tech and Techland BD, while Ryans lists the model around ৳17,500. Warranty terms also vary between sellers, so customers should check the exact warranty offered by Techno Hub Solution BD before purchasing.

Why Choose Hikvision iDS-7216HQHI-M2/XT DVR?

The Hikvision iDS-7216HQHI-M2/XT DVR is a strong choice for customers looking for a 16-channel AcuSense DVR with intelligent security functions, flexible camera compatibility and large storage capacity. Its support for H.265 Pro+, Motion Detection 2.0, perimeter protection, facial recognition, AcuSearch and up to 24 IP cameras makes it suitable for advanced CCTV surveillance requirements.

Before purchasing, customers should confirm the camera compatibility, required HDD capacity, warranty and exact accessories included with the unit.

FAQ

What is Hikvision iDS-7216HQHI-M2/XT?

Hikvision iDS-7216HQHI-M2/XT is a 16-channel 1U AcuSense DVR designed for multi-camera CCTV surveillance systems.

How many cameras can Hikvision iDS-7216HQHI-M2/XT support?

It has 16 analog camera channels and can support up to 24 IP camera inputs, with each IP channel supporting up to 6MP.

How much HDD storage does it support?

It has 2 SATA interfaces and supports up to 12TB per HDD, allowing up to 24TB total when two 12TB drives are installed.

Does Hikvision iDS-7216HQHI-M2/XT support AcuSense?

Yes. It supports AcuSense intelligent functions including Motion Detection 2.0, perimeter protection and facial recognition.

Does this DVR support H.265 Pro+?

Yes. The DVR supports H.265 Pro+, H.265 Pro, H.265, H.264+ and H.264 compression.

What is the price of Hikvision iDS-7216HQHI-M2/XT in Bangladesh?

Current Bangladesh listings show approximately ৳16,800–৳17,900, depending on seller and warranty.
