ZKTeco FR1200 Full Specifications
| Specification | Details |
|---|---|
| Brand | ZKTeco |
| Model | FR1200 |
| Product Type | Fingerprint and RFID Reader |
| Fingerprint Sensor | ZKTeco optical / small-size sensor |
| Authentication | Fingerprint and card |
| Standard Card Type | 125 kHz ID card |
| Optional Card Type | 13.56 MHz IC card, configuration-dependent |
| Communication | RS485; OSDP support on specified versions |
| Algorithm | ZKFingerprint V10.0; version may vary |
| Visual Indicator | LED |
| Audio Indicator | Buzzer |
| Protection Rating | IP65 |
| Power Supply | Commonly listed as DC 12V; current official specifications list 9–24V DC |
| Operating Temperature | 0°C to 45°C |
| Operating Humidity | 10%–90% RH, non-condensing |
| Dimensions | Approximately 102 × 50 × 37–38 mm |
| Installation | Wall mount or mullion mount |
| Warranty | 1 Year |

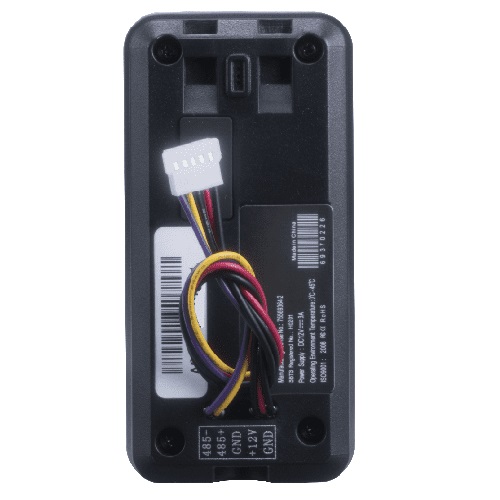

ZKTeco FR1200 Finger & RFID Exit Reader
The ZKTeco FR1200 Finger & RFID Exit Reader is designed to support secure entry and exit management in compatible access control systems. It combines fingerprint verification with RFID card reading, allowing authorised users to verify their identity using a supported fingerprint or access card.
The FR1200 communicates with compatible access control panels and fingerprint terminals through an RS485 interface. It is suitable for organisations that want to add a reader at an entry or exit point without installing a complete standalone attendance terminal at every door.
Fingerprint and RFID Card Authentication
The ZKTeco FR1200 supports two authentication methods: fingerprint verification and RFID card reading. This gives system administrators flexibility to configure access according to the requirements of their installation and the capabilities of the connected controller.
The standard configuration supports 125 kHz ID cards. Support for 13.56 MHz IC cards depends on the optional reader module, so confirm the exact configuration before ordering cards or planning an installation.
RS485 Communication and System Compatibility
The FR1200 uses an RS485 communication interface to transfer fingerprint and card information to compatible access control equipment. It is intended to operate as part of a supported system rather than independently controlling a door.
Before purchasing, confirm that your existing ZKTeco controller or fingerprint terminal supports the FR1200 and the required communication protocol. Wiring, controller configuration and software requirements depend on the complete system.
IP65-Rated Protection
The IP65-rated enclosure provides protection against dust and water jets under specified test conditions. This makes the FR1200 suitable for a range of indoor, outdoor and semi-enclosed access points when correctly installed.
IP65 does not mean the reader can be submerged in water. Use suitable installation practices and confirm environmental conditions before fitting the device outdoors.
Technical Specifications of ZKTeco FR1200
Applications of ZKTeco FR1200
The FR1200 may be used as part of a compatible access control installation in:
- Office entrances and exit points
- Commercial buildings
- Restricted-access rooms
- Business premises
- Other controlled door-access installations
The appropriate controller, electric lock, power supply, exit button and wiring accessories depend on your installation design.
Why Choose the ZKTeco FR1200?
The ZKTeco FR1200 combines fingerprint and RFID card reading in a compact reader with RS485 communication and IP65-rated protection. It can help extend a compatible access control system to additional doors or access points.
For the best results, confirm controller compatibility, card frequency, power requirements, installation accessories and warranty terms before purchasing.
FAQ:
What is the ZKTeco FR1200 used for?
The ZKTeco FR1200 is a fingerprint and RFID reader used with compatible access control controllers and fingerprint terminals to verify authorised users.
Does the ZKTeco FR1200 work independently?
No. It is generally a reader that communicates with a compatible controller or terminal. It should not be confused with a standalone attendance machine.
Which RFID cards does the FR1200 support?
The standard configuration supports 125 kHz ID cards. A 13.56 MHz IC card module may be available as an option.
Is the ZKTeco FR1200 waterproof?
It has an IP65-rated enclosure, which provides protection against dust and water jets under specified conditions. It is not designed for immersion in water.
How does the FR1200 connect to a controller?
It uses an RS485 communication interface. Confirm the required protocol and wiring with your specific controller.
What is the operating temperature of the FR1200?
The published operating temperature is 0°C to 45°C.
Can the FR1200 be used outdoors?
It can be suitable for correctly installed outdoor or semi-enclosed locations within its rated environmental conditions. Avoid submersion and follow the manufacturer’s installation guidance.
